Standard Designs with Customizable Flexibility



The SBE® is available in two standard models—the 1-6 and 2-6—designed to meet a range of production requirements. For operations with unique or evolving needs, the system can also be custom-configured and expanded, offering scalable solutions tailored to your specific manufacturing process.

1-6 Model

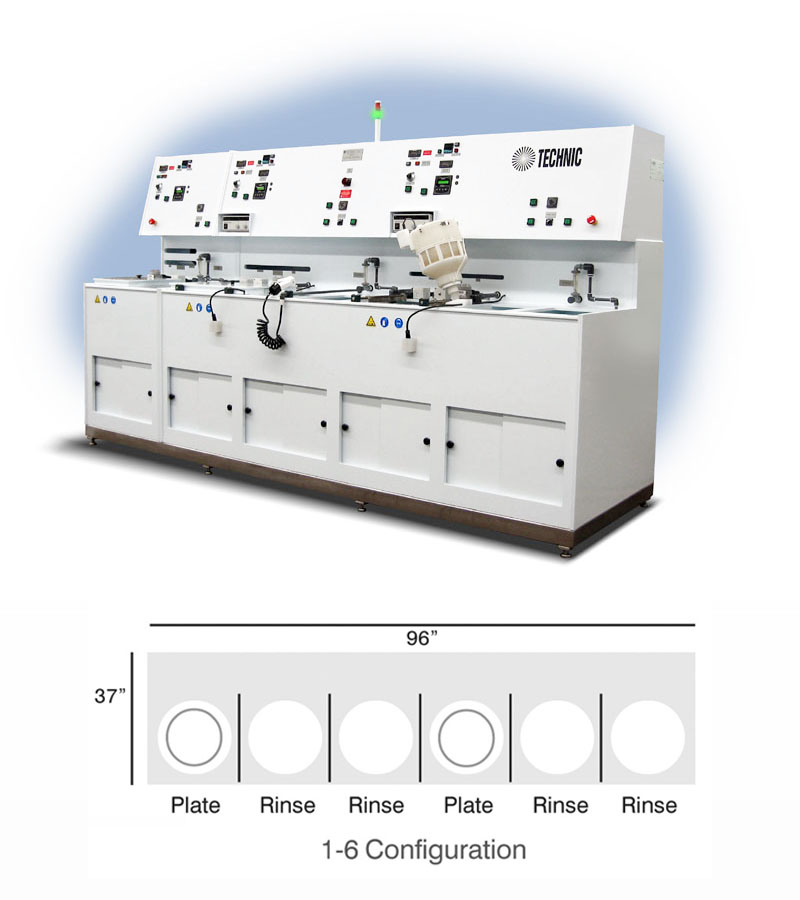

SBE Layout 1-6Compact, self-contained plating system designed for efficient, high-quality processing of small electronic components.

Features:

  • Two plating tanks: One for nickel and one for tin plating
  • Two rinse stations follow each plating step
  • Two SBE® chambers for simultaneous processing
  • Integrated system: Includes pumps, filters, rectifiers, all necessary piping, and an exhaust outlet
  • Durable construction: Built from chemical-resistant polypropylene and mounted on a stainless steel base with adjustable leg levelers

This model offers a complete, ready-to-run system for labs or production lines with moderate throughput requirements.



2-6 Model

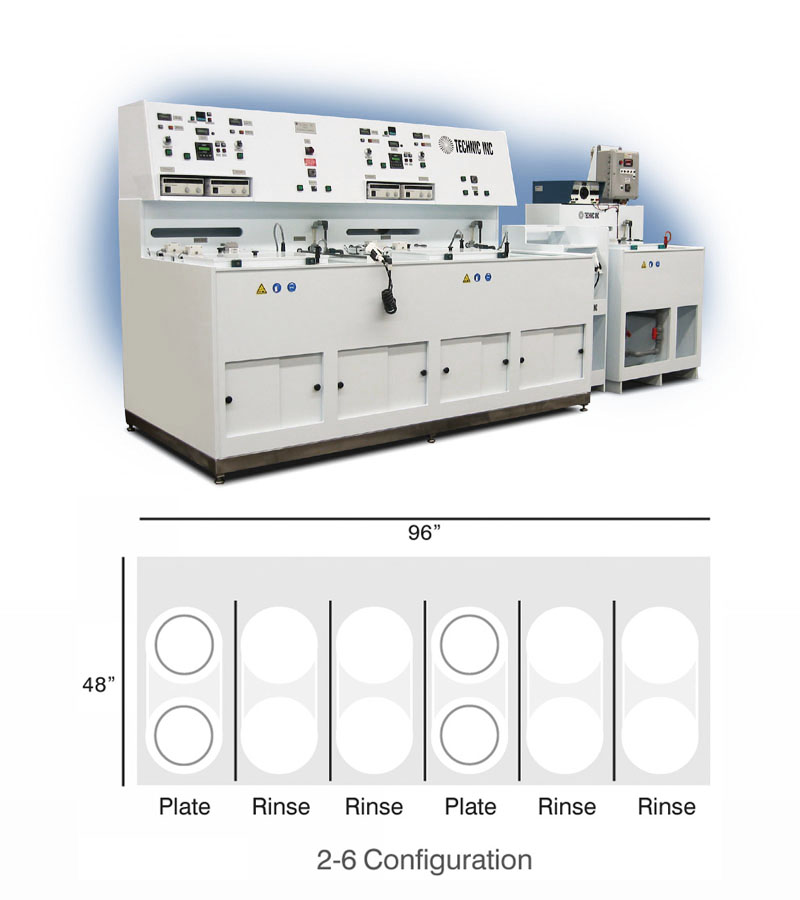

SBE 2-6 layoutDesigned for double the production capacity of the 1-6 model.

Features:

  • Two plating tanks (nickel and tin), each with a second row of stations to handle more components simultaneously
  • Four SBE® chambers to maximize throughput
  • All other features and components of the 1-6 model, including pumps, filters, rectifiers, piping, and exhaust

The 2-6 is ideal for high-volume operations seeking greater efficiency and output without expanding the system footprint significantly.


Multi-Process Configurations

Customized for Complex Manufacturing Needs

Technic’s SBE® systems are fully customizable to support multi-process configurations, enabling seamless integration of multiple plating steps, such as nickel, tin, gold, or other finishes, within a single line.

For added flexibility, these systems can be operated in both fully automated and programmable manual modes, giving operators full control when needed while maintaining process consistency and repeatability.

Whether you're automating a full line or need the versatility of manual control, Technic delivers a solution that adapts to your production strategy.
